Weld-On Hinges

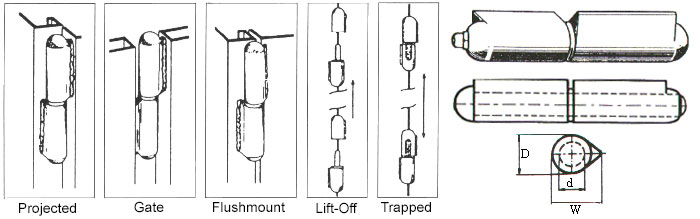

Weld-On hinges provide a strong, compact, and attractive method of attaching metal doors to metal frames for industrial applications- available in several styles including projected, gate, flushmount, lift-off and trapped.
Hinges, Inc.
Make Your Line More Flexible
Tel: (334) 347-3423 | Email: hinges@HingesInc.com
Stainless Steel
| Length | D | W | d | Shp. Wt.% | Full Order # |
|---|---|---|---|---|---|
| 2-3/8" | 25/64" | 1/2" | 1/4" | 8 lb. | W7446.060 |
| 3-3/16" | 1/2" | 19/32" | 5/16" | 18 lb. | W7446.080 |
| 4" | 5/8" | 25/32" | 25/64" | 36 lb. | W7446.100 |
| 4-3/4" | 5/8" | 25/32" | 7/16" | 43 lb. | W7446.120 |
| 6" | 25/32" | 1" | 1/2" | 87 lb. | W7446.150 |
| 7" | 25/32" | 1" | 9/16" | 105 lb. | W7446.180 |
Mild Steel
| Length | D | W | d | Shp. Wt.% | Fixed | Fixed | Removable | Grease | Roller |
|---|---|---|---|---|---|---|---|---|---|
| Steel Pin | Brass Pin | Steel Pin | Fitting | Bearing | |||||
| 1-9/16" | 5/16" | 3/8" | 3/16" | 3.4 lb. | W7116.040 | W7156.040 | |||
| 2" | 5/16" | 3/8" | 3/16" | 4.4 lb. | W7116.050 | W7156.050 | |||
| 2-3/8" | 25/64" | 1/2" | 1/4" | 8 lb. | W7116.060 | W7156.060 | W7117.060 | ||
| 2-3/4" | 7/16" | 17/32" | 9/32" | 12 lb. | W7116.070 | W7156.070 | W7117.070 | GF | |
| 3-3/16" | 1/2" | 19/32" | 5/16" | 18 lb. | W7116.080 | W7156.080 | W7117.080 | GF | RB |
| 4" | 5/8" | 25/32" | 25/64" | 36 lb. | W7116.100 | W7156.100 | W7117.100 | GF | RB |
| 4-3/4" | 5/8" | 25/32" | 7/16" | 43 lb. | W7116.120 | W7156.120 | W7117.120 | GF | RB |
| 6" | 25/32" | 1" | 1/1" | 87 lb. | W7116.150 | W7156.150 | W7117.150 | GF | RB |
| 7" | 25/32" | 1" | 9/16" | 105 lb. | W7116.180 | W7156.180 | W7117.180 | GF | RB |
| 8" | 15/16" | 1-1/8" | 5/8" | 150 lb. | W7116.200 | W7156.200 | W7117.200 | GF | RB |
